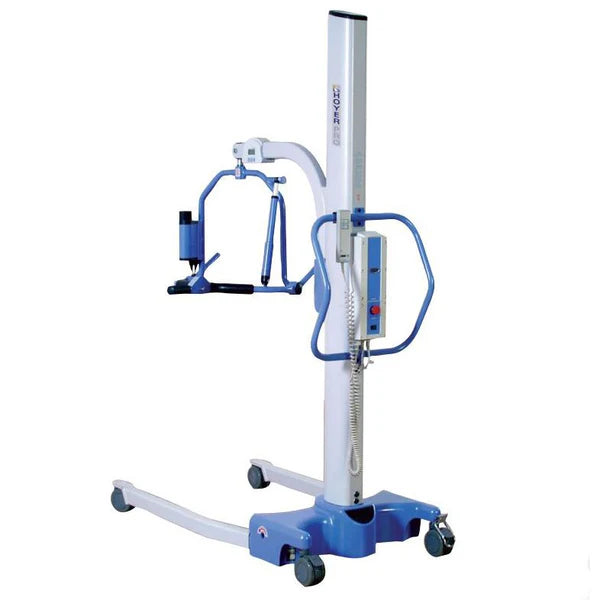

Joerns Hoyer Stature Professional Patient Lift
The Joerns Hoyer Stature Professional Patient Lift is a reliable, heavy-duty solution for safe and comfortable patient transfers. Designed with both residents and caregivers in mind, it features a 4-point cradle, an electric base, and a low-profile frame that easily fits under beds, wheelchairs, and furniture without sacrificing stability.
Available in two configurations—standard model or with an integrated scale—this lift adapts to diverse care needs while maintaining ease of use.
Key Features
-
High Weight Capacity – Safely lifts up to 500 lbs (227 kg).
-
Low-Profile Base – Slides under furniture with ease.
-
Smart Monitor System – Displays service data, battery levels, and usage information on an LCD screen.
-
Hand Control – Provides flexible operation for repositioning without disturbing the resident.
-
Integrated Scale Option – Weigh residents directly in the cradle, with measurements in pounds or kilograms.
Specifications
-
Safe Working Load: 500 lbs (227 kg)
-
Overall Length: 50.8" – 54.7" (1290 – 1390 mm)
-
Overall Height: 76.6" – 83.8" (1945 – 2130 mm)
-
Attachment Point Height (4-Point): 15.4" – 61.0" (390 – 1550 mm)
-
Attachment Point Height (6-Point): 26.6" – 77.1" (675 – 1975 mm)
-
Turning Radius: 61.0" (1550 mm)
-
Leg Width (Open): 48.4" – 53.5" (1230 – 1360 mm)
-
Leg Width (Closed): 25.1" – 29.9" (640 – 760 mm)
-
Ground Clearance: 1.2" (30 mm)
-
Caster Size: 4.0" (100 mm), with rear brakes
-
Total Weight: 162 lbs (73.5 kg)
Electrical Details
-
Battery: 24vDC rechargeable sealed lead acid
-
Battery Capacity: 3.2 Ah
-
Charger Input: 100–240V AC, 50/60Hz
-
Charger Output: 29.5 VDC, max 19 W
Warranties
-
2 Years – Defects in materials and workmanship
-
5 Years – Aluminum structural and mechanical components
-
90 Days – Casters and batteries
Accessories (Sold Separately)
-
Adaptive Positioning Spreaders & Powered Cradles (4-Point & 6-Point options)
-
Scale cradle and digital scale
-
Replacement batteries and charging station
-
Canvas stretchers (standard and extra wide)
-
Instructional video and compatible Joerns Hoyer slings (Quickfit, Full Back, Comfort, Long Seat, and more)
Configurations
-
#HOY-STATURE – Standard Model
-
#HOY-STATUREWSC – Model with Integrated Scale
✅ Ergonomically designed for caregiver ease and resident comfort
✅ Safe and reliable transfers from floor, wheelchair, or bed
✅ Smart monitoring technology ensures service efficiency
